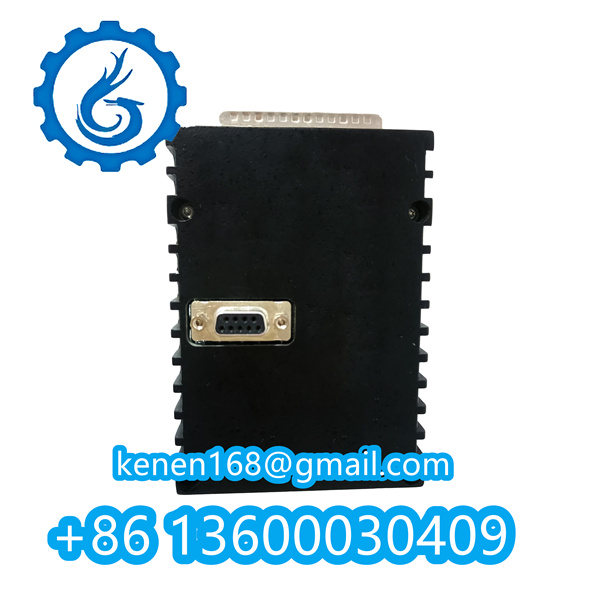

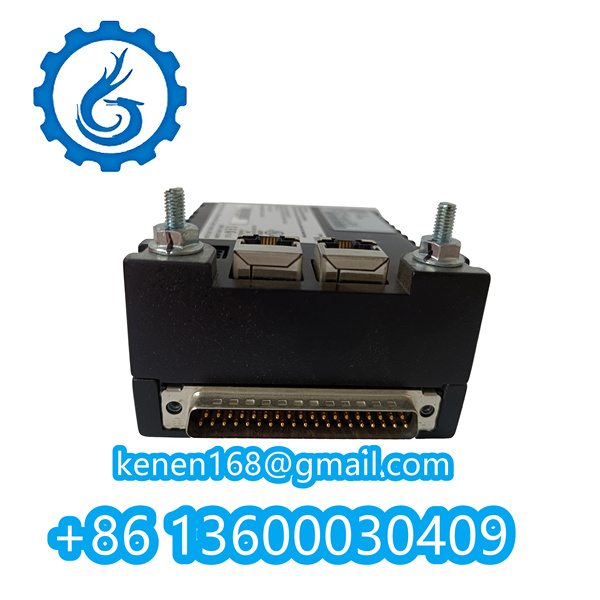

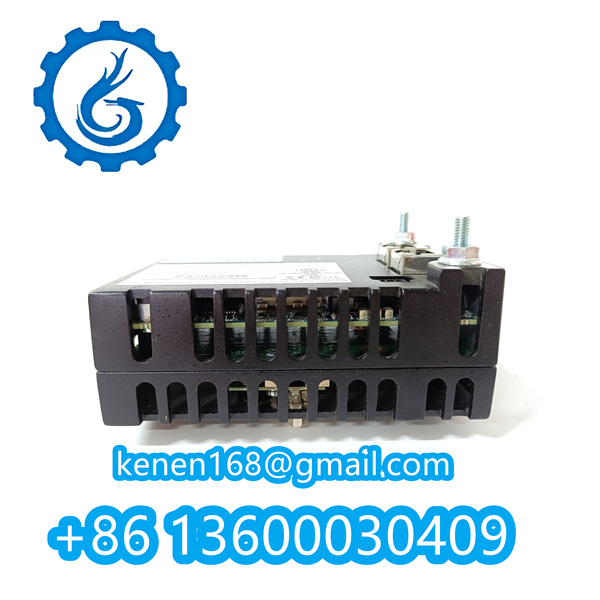

GE Mark VIe Industrial I/O Module
Model: IS220PPRFH1B
Functional Designation: PROFIBUS Master Gateway I/O Pack
Core Specifications
| Parameter | Specification |
|---|---|
| Primary Function | PROFIBUS-DP Master Protocol Gateway |
| Form Factor | BPPC (Base Plate Pack Controller) |
| Communications | Dual-port PROFIBUS-DP interface |
| Certification | SIL 2 (IEC 61508 compliant) |
| Operating Voltage | 24V DC (±10%) |
Key Features
-
Industrial Protocol Support
- Full PROFIBUS DP-V0/V1 master functionality
- Baud rates up to 12 Mbps with auto-negotiation
- Supports 244 bytes input/output data exchange
-
Hardware Integration
- Integrated terminal block for RS-485 bus connection

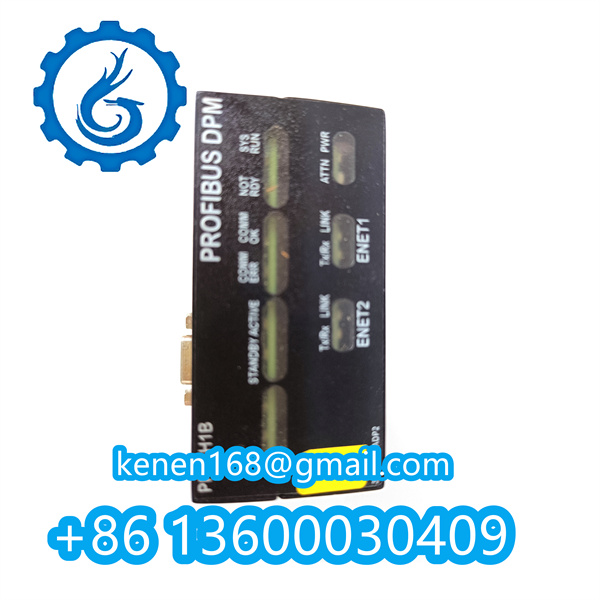

- Diagnostic LEDs for network status and error indication
- Conformal coated PCB for harsh environments (IP20 rating)
-
System Compatibility
- Direct integration with GE Mark VIe control systems
- Hot-swappable BPPC form factor for live maintenance
- Supports up to 124 field devices per segment
Environmental & Compliance
plaintextCopy Code
Operating Temp: -40°C to +70°C
Vibration: 5-500Hz @ 2G (IEC 60068-2-6)
Certifications: CE, UL 508, RoHS 3
Hazardous Location: Optional ATEX version (IS220PPRFH1BAX)IS220PPRFH1B GE I/O Module PDF
··········································································································
