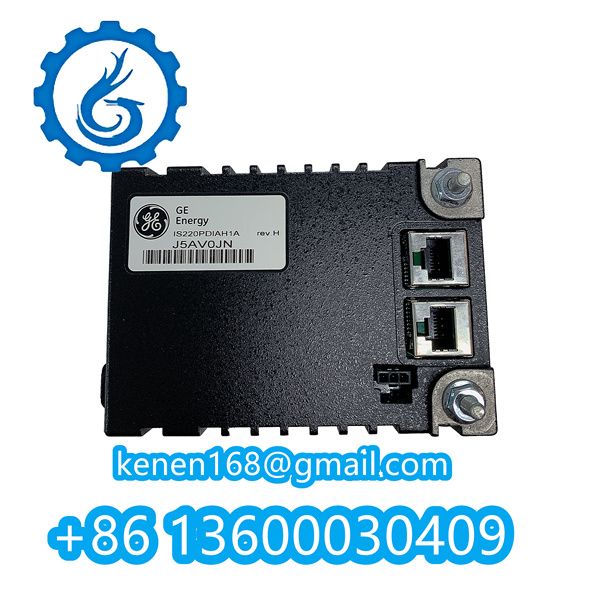

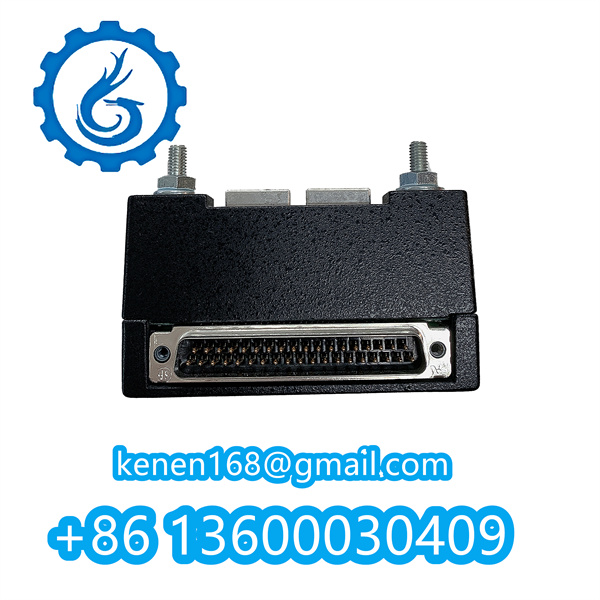

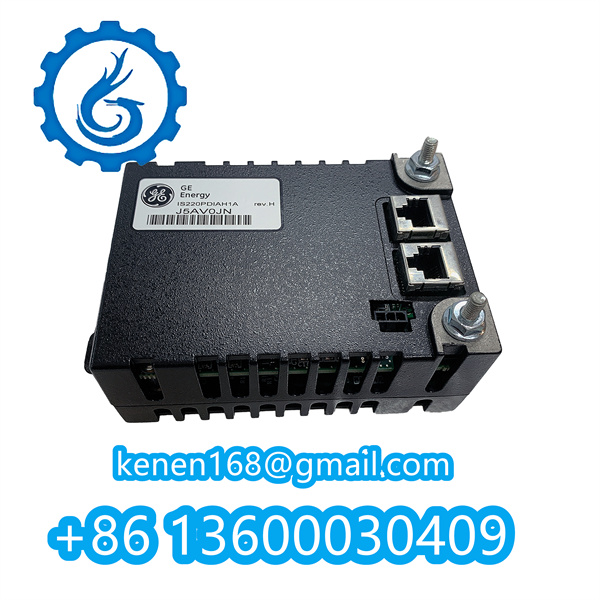

GE IS220PDIAH1A Discrete Input/Output Module
Product Identification
- Manufacturer: General Electric (GE)
- Model: IS220PDIAH1A 13
- Series: Mark VIe control system component 1
- Condition: Factory-new original equipment (OEM) 3
Functional Specifications
| Parameter | Configuration |
|---|---|
| Module Type | Discrete I/O (Digital Input/Output) 13 |
| Channel Design | Dual-redundant architecture † 4 |
| Communication | Integrated with DCS/PLC systems via GE’s high-speed backplane 2 |
| Compatibility | Interoperable with: |
textCopy Code
- IS200/IS230 series controllers :ml-citation{ref="1" data="citationList"}
- Triconex safety systems † :ml-citation{ref="2" data="citationList"} |
Physical & Electrical Properties
plaintextCopy Code
• Mounting: Standard 19" rack installation (Mark VIe platform)
• Connectors: Front-accessible terminal blocks
• Voltage Range: 24V DC industrial standard †
• Isolation: 2500V AC channel-to-ground
• Diagnostic LEDs: Per-channel status indication
IS220PDIAH1A pdf
··········································································································
