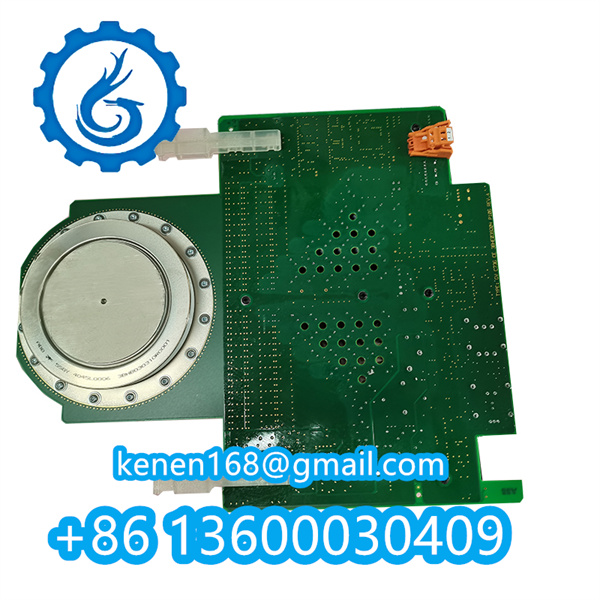

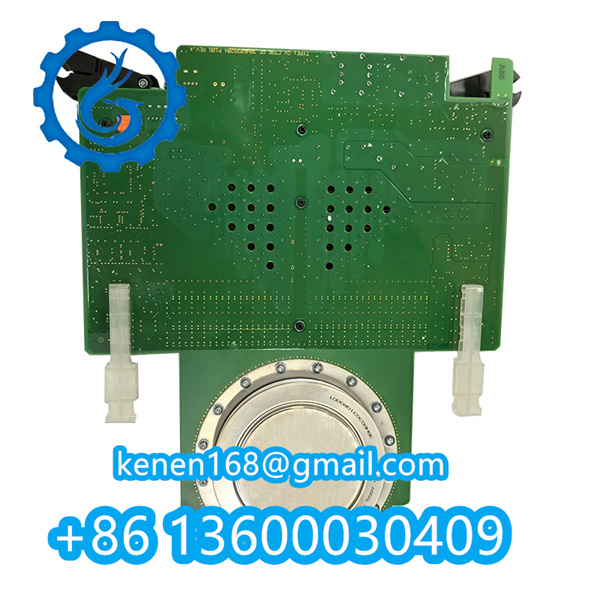

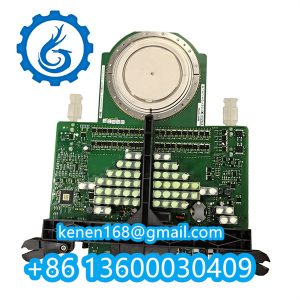

The instructions of 5SHY 4045L0006 ABB
Key Specifications
- Voltage Rating: 4500V blocking capability
- Physical Dimension: 91mm wafer size
- Technology: Integrated Gate-Commutated Thyristor (IGCT) combining GTO’s high blocking capacity with IGBT-like switching performance
- Integrated Component: Includes freewheeling diode on a single chip for reduced dynamic losses
️ Installation Requirements
- Thermal Management
- Use thermal interface materials with conductivity ≥3 W/m·K.
- Mounting pressure: 8–12 MPa (uniformly distributed)
- Electrical Isolation
- Ensure creepage distance ≥25mm between terminals (4500V applications).
- Ground chassis via low-impedance path (＜1Ω)
⚠️ Operational Precautions
- Voltage Limits: Never exceed 4500V DC or risk permanent breakdown
- Switching Constraints:
- Maximum dV/dt: 1000 V/µs (higher values require snubber circuits)
- Turn-off current limit: 4.5 kA (transient)
- Temperature Range:
- Operating: -40°C to +125°C (junction temperature)
- Storage: -40°C to +85°C
🔧 Failure Prevention
| Risk Scenario | Mitigation |
|---|---|
| Overvoltage Spikes | Install RC snubbers parallel to module |
| High dV/dt Stress | Add series air-core inductors (≥1mH) |
| Thermal Runaway | Monitor heatsink ΔT (max. 40°C above ambient) |
🔍 Compatibility Notes
- Driver Circuits: Requires ABB-specified gate units (e.g., 5SGY35L4510) for hard-drive switching
- Incompatible Use: Avoid phase-control applications due to asymmetric blocking characteristics
📥 Documentation Access
Full technical manuals (e.g., Installation Guide, Characteristic Curves) require ABB customer portal access:
textCopy Code
Email: support@abb.com
Subject: 5SHY4045L0006 IGCT Manual Request
Body: Provide company ID and module serial number⚠️ Critical Warning
- Non-Authorized Modifications: Void warranty and safety certification (e.g., UL, CE) .
- ESD Sensitivity: Handle only with grounded tools and wrist straps
5SHY 4045L0006 ABB PDF
3BHS600000_E80_RevF_Service_Manual_PCS6000
·····································································································································································································································································································································
Our advantages:
1. The brand new product comes with a one-year comprehensive warranty.
2. All products undergo strict quality inspections.
3. Contact us and our team will provide competitive quotes and procurement plans.
