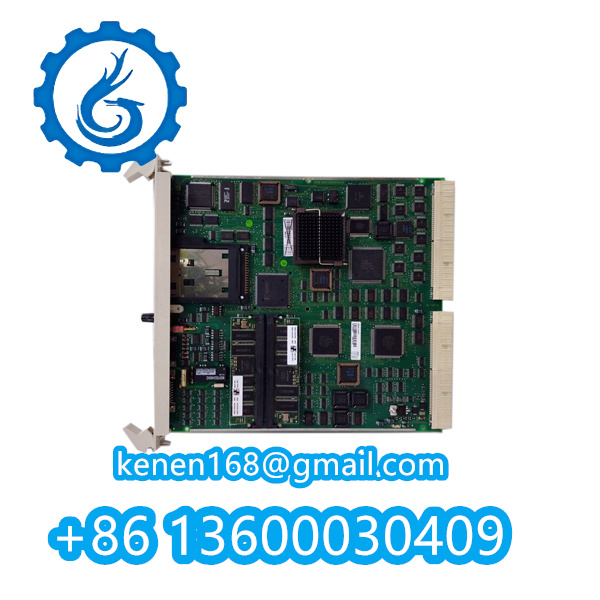

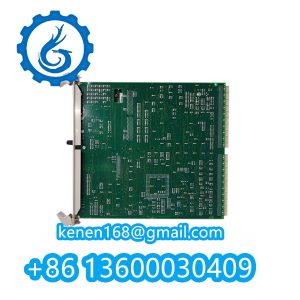

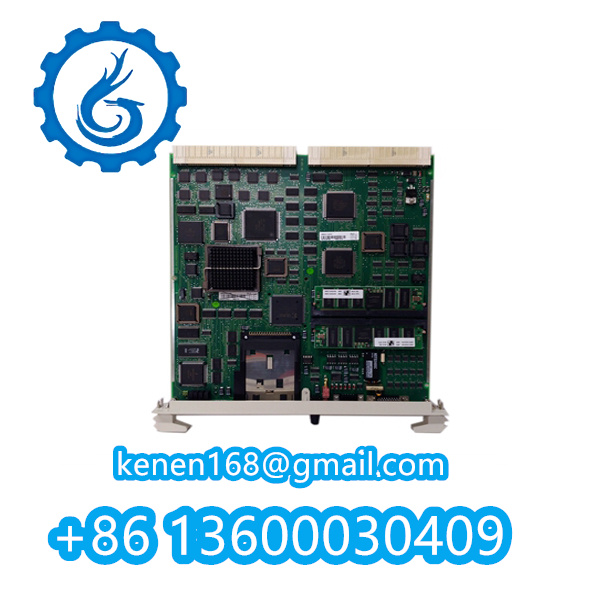

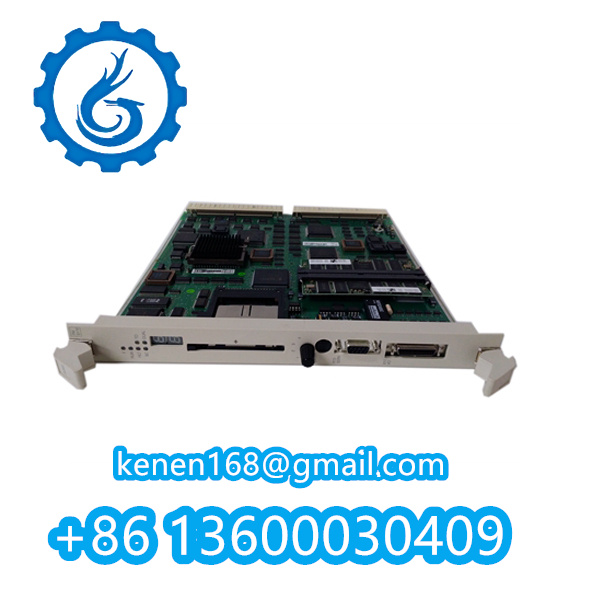

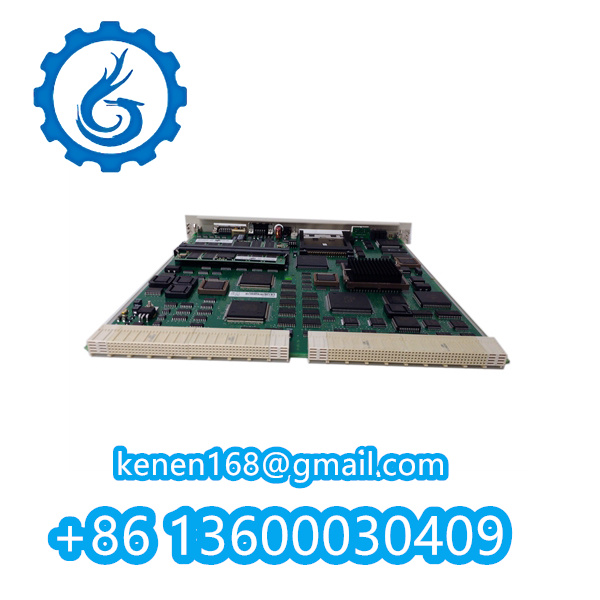

Application examples for the ABB 3BSE011180R1 (PM511V08) Processor Module
Application Case Studies
1. Power Plant Distributed Control System
- Configuration: Deployed as redundant controllers in 800xA systems at a 2.4GW coal-fired plant
- Function:
- Real-time turbine governor control (response time <10ms)
- Integration with S+ Operations for SCADA historian data logging
- Outcome: Achieved 99.998% availability over 3 years with hot-swap capability during maintenance
2. Oil & Gas Pipeline Safety System
- Implementation: SIL3-certified solution for emergency shutdown (ESD) valves
- Key Features:
- Dual-redundant PM511V08 processors with <50ms failover
- PROFIBUS DP interface to field devices (Modbus RTU conversion via SCM modules)
- Certification: Compliant with IEC 61508/61511 functional safety standards
3. Pharmaceutical Batch Process Automation
- Architecture: Master controller in DeltaV-integrated hybrid system
- Performance:
- Precise recipe execution (batch deviation <0.5%)
- OPC UA communication with MES layer
- Validation: 21 CFR Part 11 compliant audit trails
4. Technical Specifications Summary
| Parameter | Value |
|---|---|
| Cycle Time | 1ms (typical logic scan) |
| Memory | 16MB Flash + 8MB RAM |
| Communication | 2x Ethernet, 1x RS232/485 |
| MTBF | 250,000 hours (IEC 61709) |
3BSE011180R1 SE071005AK PM511V08 ABB pdf
3BSE011180R1 SE071005AK PM511V08 ABB
···········································································································
Our advantages:
1. The brand new product comes with a one-year comprehensive warranty.
2. All products undergo strict quality inspections.
3. Contact us and our team will provide competitive quotes and procurement plans.
