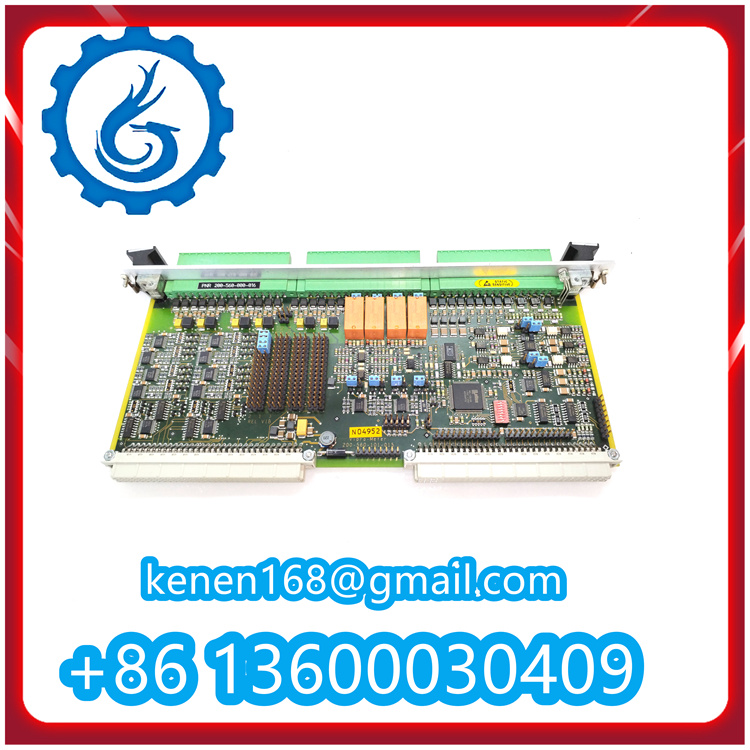

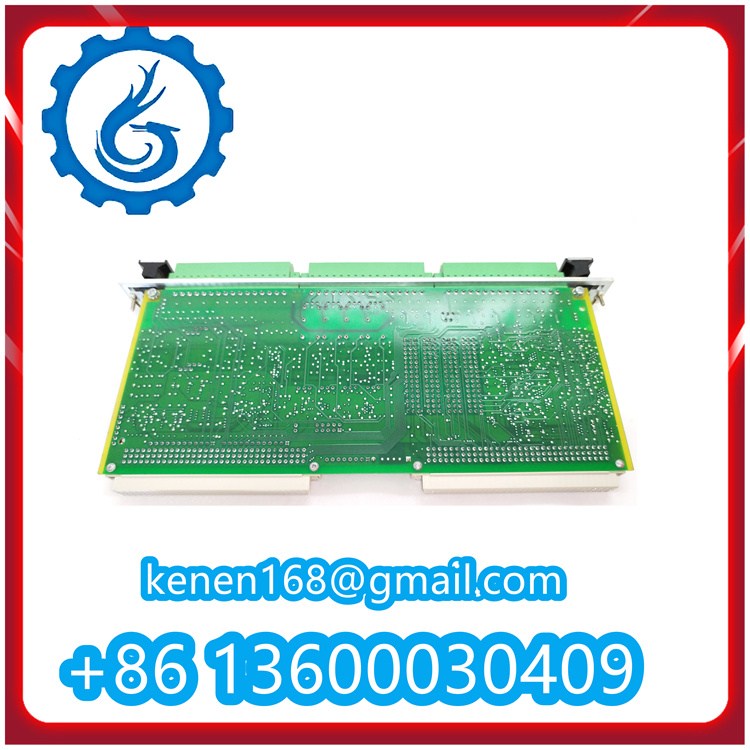

vmf-IOC4T 200560-101-017 200-560-000-111 vibro-meter original

vmf-IOC4T 200560-101-017 / 200-560-000-111 Basic Technical Specifications
I. General Information

Brand: vibro-meter (a Siemens Energy brand, specialized in industrial vibration and condition monitoring solutions)

Product Series: vmf-IOC4T Series Intelligent Condition Monitoring Input/Output Module

Model Numbers: 200560-101-017, 200-560-000-111

Product Type: Compact, multi-channel intelligent monitoring module designed for vibration, temperature, and speed measurement of rotating machinery, integrating signal acquisition, processing, and communication functions

Key Applications: Condition monitoring and predictive maintenance for rotating equipment in power generation (turbines, generators), oil & gas (compressors, pumps), petrochemicals, marine, and heavy industry sectors

1. Core Technical Specifications

(1) Power Supply Specifications

Input Voltage: 24 V DC ±10% (nominal operating voltage)

Voltage Adaptation Range: 18 V DC ~ 32 V DC (wide voltage compatibility)

Power Consumption: Typical 6 W, Maximum 10 W (full channel operation)

Reverse Polarity Protection: Built-in circuit, withstands -30 V DC reverse voltage without damage

Surge Protection: Complies with IEC 61000-4-5 standard, ±2 kV differential mode, ±4 kV common mode protection

ICP Sensor Power Supply: Built-in 24 V DC constant current supply (4 mA per channel) for piezoelectric accelerometers

(2) Input Signal Parameters

Common Input Specifications for Both Models

Input Channels: 4 independent monitoring channels (configurable per channel)

Supported Signal Types:

Vibration Signals: ICP/Piezotron accelerometers (charge/voltage output), velocity sensors (0–200 mm/s peak), displacement sensors (0–200 μm peak-peak)

Temperature Signals: Pt100/Pt1000 RTD (2/3/4-wire), thermocouples (K/J/T/E type)

Speed Signals: Proximity probes (NPN/PNP), gear tooth sensors (0–10 kHz frequency range)

Input Resolution: 24-bit ADC (vibration/temperature signals)

Sampling Rate: Configurable (1 kHz ~ 10 kHz per channel), default 5 kHz

Input Impedance: ≥10 MΩ (voltage signals); 250 Ω (current-loop signals)

Model-Specific Input Differences

200560-101-017: Supports high-temperature RTD measurement (up to 600℃) and differential vibration signal input (for shaft relative vibration)

200-560-000-111: Supports dynamic pressure signal input (0–10 V DC) and pulse-width modulation (PWM) speed signal decoding

(3) Output & Communication Specifications

Analog Outputs: 2 channels (4–20 mA current signal), load capacity ≤800 Ω

Digital Outputs: 4 channels (relay outputs, Form C), contact rating 2 A @ 250 V AC / 30 V DC

Communication Interfaces:

Primary: Ethernet (RJ45, 10/100 Mbps), supports PROFINET IO, Ethernet/IP, Modbus TCP

Secondary: RS485 serial port (terminal block), supports Modbus RTU (9600–115200 bps configurable)

Data Output Formats: Raw vibration data, processed parameters (RMS, peak, peak-peak, kurtosis), temperature values, speed (RPM)

(4) Monitoring Performance

Vibration Measurement Range:

Acceleration: 0–50 g peak (±1% accuracy at 25℃)

Velocity: 0–200 mm/s peak (±0.5% accuracy at 25℃)

Displacement: 0–200 μm peak-peak (±0.8% accuracy at 25℃)

Temperature Measurement Accuracy: ±0.1℃ (Pt100, 0–300℃); ±0.3℃ (thermocouples, 0–400℃)

Speed Measurement Range: 0.1–10,000 RPM (±0.1% accuracy)

Signal Processing: Built-in FFT analysis (up to 1024 points), band-pass filtering (1 Hz ~ 5 kHz configurable)

Alarm Function: Configurable multi-level alarms (warning, critical) for vibration, temperature, and speed thresholds

III. Dimensions & Weight

(1) Overall Dimensions (L × W × H, excluding connectors)

200560-101-017: 105 mm × 32 mm × 120 mm (4.13 in × 1.26 in × 4.72 in)

200-560-000-111: 110 mm × 32 mm × 120 mm (4.33 in × 1.26 in × 4.72 in)

(2) Mounting Parameters

Mounting Method: 35 mm standard DIN rail mounting (complies with EN 60715:2001)

Module Thickness: 1 standard DIN rail unit (32 mm)

Mounting Torque: Recommended 2.0–2.5 N·m (for terminal connections)

Connector Type: Removable spring-clamp terminals (accepts 0.5–2.5 mm² solid/stranded wire)

(3) Weight

200560-101-017: Approximately 250 g (0.55 lb)

200-560-000-111: Approximately 270 g (0.59 lb)

1. Operating Environment Requirements

Operating Temperature Range: -20 ℃ ~ +65 ℃ (-4 ℉ ~ +149 ℉)

Storage Temperature Range: -40 ℃ ~ +85 ℃ (-40 ℉ ~ +185 ℉)

Relative Humidity: 5% ~ 95% RH (non-condensing), up to 30 ℃ (86 ℉)

Protection Rating: IP20 (front panel, IEC 60529); IP40 (with optional protective cover)

Vibration Resistance: Complies with IEC 60068-2-6 standard, 10–2000 Hz, 10 g peak acceleration (axial/radial)

Shock Resistance: Complies with IEC 60068-2-27 standard, 50 g peak acceleration, 11 ms half-sine wave (3 times per axis)

Altitude: Up to 2000 m (6562 ft) above sea level (no derating required)

Electromagnetic Compatibility (EMC):

Radiated Emissions: EN 55011 Class B

Conducted Emissions: EN 55011 Class B

ESD Immunity: IEC 61000-4-2 ±8 kV (contact), ±15 kV (air)

Radiated Immunity: IEC 61000-4-3 10 V/m (80–1000 MHz)
