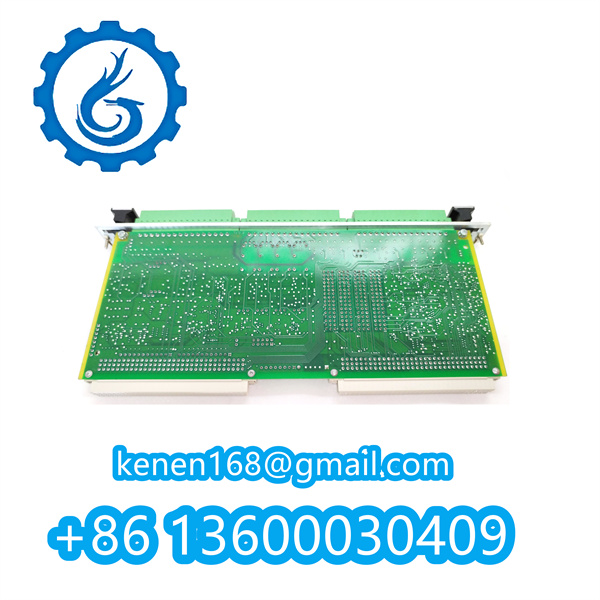

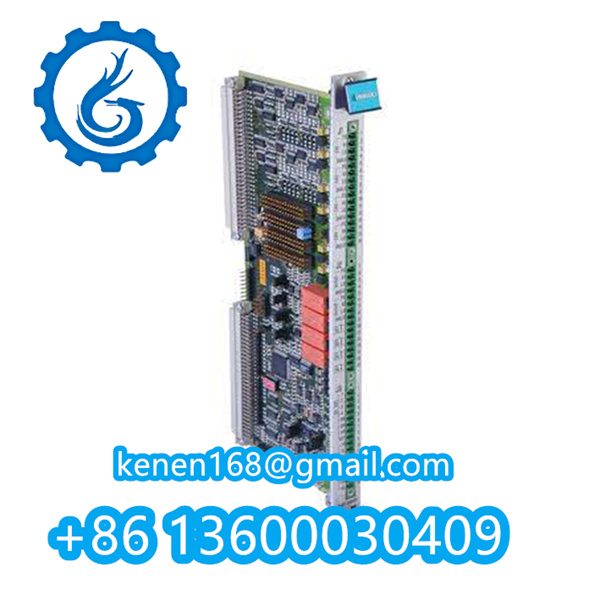

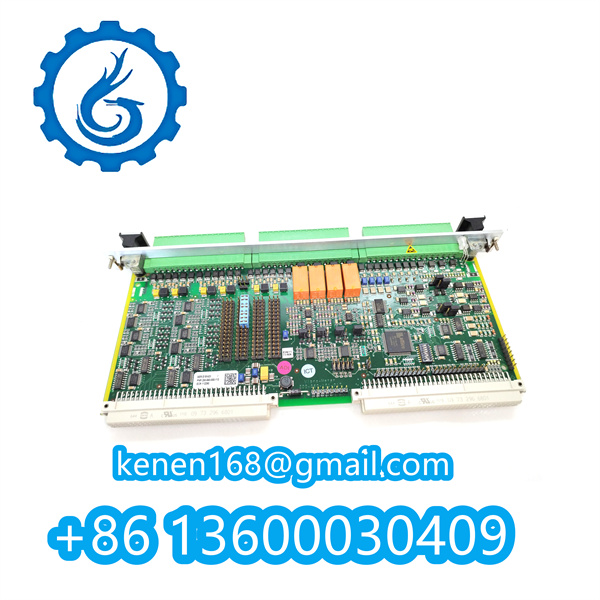

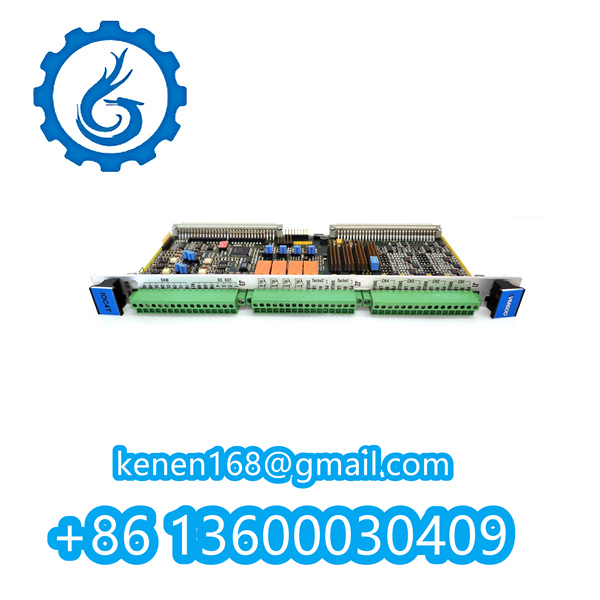

VM600 IOC4T PNR200-560-000-111

Name: VM600 IOC4T PNR200-560-000-111
Brand: Vibro-meter
SKU: 1702
Availability: InStock

$432.00

Operational Validation‌

‌Step 5: Functional Testing‌

plaintextCopy Code

1. Channel Response Check:

   - Inject step signal: 0-80% FS in 10ms

   - Measure rise time: ≤15ms (per API 670)

2. Cross-talk Test:

   - Energize Ch1 @ 8g - verify Ch2/3/4 <0.25%

3. Diagnostic Indicators: | &zwnj;**LED**&zwnj; | &zwnj;**Normal**&zwnj; | &zwnj;**Fault**&zwnj; | |--------------|------------|-------------------| | OK (Green) | Solid | Off = HW failure | | CH1 (Yellow) |

Add to compare

Add to wishlist

Shipping & Delivery

Courier delivery

Our courier will deliver to the specified address

2-3 Days

From $20

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From $40

Warranty 1 year

More details

Free 30-Day returns

More details

Description

ABB VM600 Monitoring System: IOC4T Module Operation

MANDATORY PRECAUTIONS‌

De-energize associated sensors (accelerometers/proximitors) before connection
Verify floating ground configuration: Isolation voltage >250V DC (Channel-to-Backplane)
Wear ESD wrist strap (1MΩ resistance) during handling

‌Hardware Configuration‌

‌Step 1: Module Installation‌

plaintextCopy Code

1. Insert into VM600 rack slot: Position E4-E7 only (PNR200-560 requirement)

2. Engage locking levers: Apply 8 Nm torque until audible click



3. Grounding: Connect shield terminal (X1.13) to rack earth bar (≤0.1Ω continuity)

‌Step 2: Sensor Wiring‌

‌Terminal‌	‌Signal Type‌	‌Wiring Specification‌
X1.1-X1.4	ICP® Accelerometer	RG-178 coaxial (max 300pF/m)
X1.5-X1.8	Proximitor (+24V EX)	Twisted pair AWG20 (shielded)
X1.9	Common Sense Return	16mm² ground wire (star point)

‌Critical:‌ Maintain >50mm separation from power cables. Use ferrites (ABB FKC-45) for runs >15m.

‌Software Configuration (via Control Builder M)‌

‌Step 3: Module Initialization‌

iniCopy Code

[IOC4T_Config]

Slot_Address = E5                ; Match physical slot position

Sensor_Type = 4:Accel_SE         ; 1=Proxim, 2=Temp, 3=Velom, 4=Accel

Excitation = 24V_DC@4mA          ; For proximitor channels

Range = ±10g_peak                ; Accelerometer full-scale

‌Step 4: Calibration Procedure‌

plaintextCopy Code

1. Apply calibration signal: 10.00V RMS @ 160Hz (Fluke 725 calibrator)



2. Execute auto-zero:

   MEL > I/O Config > IOC4T > "Calibrate All"



3. Verify:

   - Raw value tolerance: ±0.5% FS

   - Noise floor: <2mV RMS (0.02% FS)
