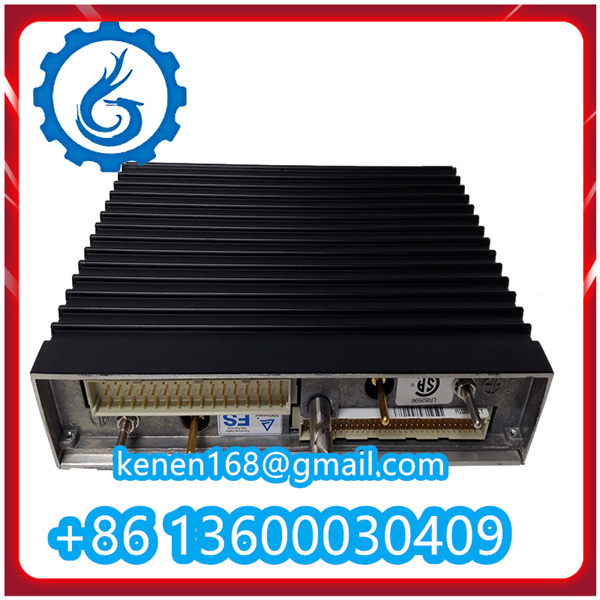

TRICONEX DO3401 DCS MODULE NEW BRAND

TRICONEX DO3401 Digital Output Module: Overview and Technical Specifications
1. Product Overview
The TRICONEX DO3401 is a high-integrity digital output module designed for safety-critical applications in industrial automation systems, manufactured by TRICONEX (now part of Schneider Electric) . As a key component of the Triconex Trident safety instrumented system (SIS) and Tricon system, it provides a fault-tolerant interface between control systems and field devices such as valves, actuators, and pumps. The module is specifically engineered for use in emergency shutdown systems (ESD), fire and gas systems (F&G), and burner management systems (BMS) in industries including oil and gas, chemical, power generation, and pharmaceuticals. It features a triple modular redundant (TMR) design, advanced diagnostic capabilities, and solid-state relay outputs to ensure reliable operation in harsh industrial environments. The DO3401 is certified for SIL3 (Safety Integrity Level 3) compliance, meeting IEC 61508 and IEC 61511 safety standards.

2. Core Technical Specifications
2.1 Basic Information
Brand: TRICONEX (Schneider Electric)
Model: DO3401 (also referred to as 3401)
Product Type: Digital Output Module (Solid State Relay)
Country of Origin: United States of America (USA)
Safety Certification: SIL3 compliant (IEC 61508/IEC 61511)
2.2 Physical Dimensions & Weight

Dimensions: 115 mm × 60 mm × 300 mm (typical rack-mount size for Triconex modules)
Weight: 0.4–0.5 kg (varies slightly by source)
Mounting: 19-inch rack mount compatible
Protection Rating: IP20 (standard for industrial control modules)
2.3 Temperature Ratings
Operating Temperature: -40°C to +70°C (extreme environment capability)
Storage Temperature: -40°C to +85°C
Humidity Range: 5% to 95% relative humidity, non-condensing
2.4 Electrical Input Specifications
Power Supply: 24 VDC (nominal)
Power Consumption: <6 W (typical)
Isolation: 2500 V minimum (field wiring to control logic)
Absolute Maximum Reverse Input Voltage: -0.6 VDC
