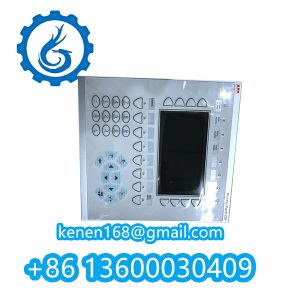

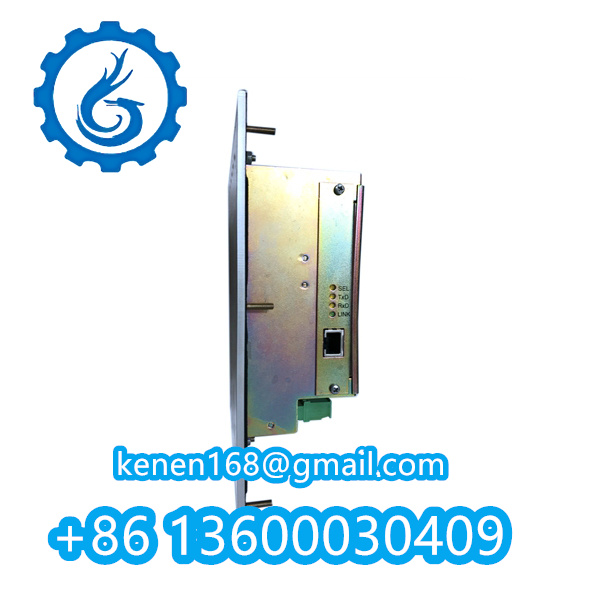

PP245 3BSC690103R2 ABB Touch Screen

ABB PP245 (3BSC690103R2) High-Integrity Safety Controller Module

Core Functional Overview‌

1. ‌Safety-Critical Control‌

   • Certified for ‌SIL 3 (IEC 61508)‌ and ‌AK6 (IEC 62061)‌ applications, delivering redundant safety logic execution for process shutdown systems.
   • Implements ‌dual-redundant CPUs‌ with continuous self-diagnostics (99.9% diagnostic coverage).

1. ‌System Integration‌

   • Native compatibility with ABB’s ‌800xA Extended Automation Platform‌ and ‌Safeguard 400 Series‌ safety systems.
   • Supports ‌FOUNDATION Fieldbus H1‌ and ‌Profibus PA‌ protocols for seamless sensor/actuator integration.

2. ‌Robust Design‌

   • Operating temperature: ‌-40°C to +70°C‌ (conformal coated for corrosive environments).
   • Hot-swappable design with ‌MTBF >350,000 hours‌ (IEC 61709 verified).

‌Key Features‌

‌Application Scenarios‌

• Emergency Shutdown Systems (ESD) in oil/gas refining
• Turbine overspeed protection (power generation)
• Burner management (chemical/petrochemical)
• Machine safety interlocks (heavy manufacturing)

‌Note‌: For configuration files and SIL verification reports, access ABB’s Automation Builder suite (v4.1+ required).

‌Ordering & Support‌

• ‌Full P/N‌: 3BSC690103R2
• ‌Replacement Policy‌: Always replace as a complete module; partial component substitution voids certification.
• ‌Technical Support‌: contact safety.systems@abb.com with module serial number (e.g., S/N: PP245-XXXX-YYYY).

PP245 3BSC690103R2 PDF

pp245_3bsc690103r2_abb_touchscreen(EN)

···········································································································

Our advantages:
1. The brand new product comes with a one-year comprehensive warranty.
2. All products undergo strict quality inspections.
3. Contact us and our team will provide competitive quotes and procurement plans.
