PM864AK01 3BSE018161R1 ABB Processor Unit

The operational steps for ‌ABB PM864AK01 3BSE018161R1

Installation & Power-Up‌

1. ‌Mounting‌

   • Install the module in a ‌DIN rail-compatible‌ control cabinet, ensuring ambient temperature stays within ‌-40°C to +70°C‌.
   • Secure grounding (resistance <1Ω) to prevent EMI interference7.

2. ‌Connections‌

   • ‌Power Supply‌: Connect ‌24V DC‌ to designated terminals (polarity-sensitive).
   • ‌Communication Ports‌:

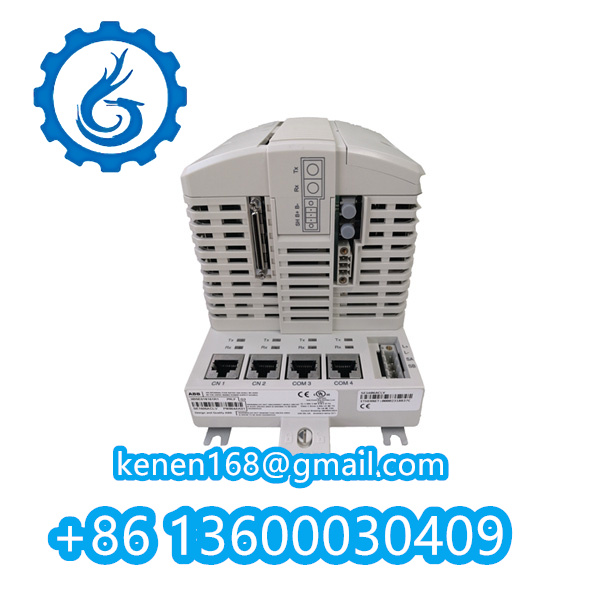

     • ‌Ethernet (CN1/CN2)‌: For control network redundancy (RJ45).
     • ‌Serial (COM3/COM4)‌: Use COM3 for RS-232C with modem control; COM4 for configuration tools.

‌Configuration Steps‌

1. ‌Firmware Initialization‌

   • Verify firmware version via Compact Control Builder software (V4.5+). Update if outdated.

2. ‌Network Setup‌

   • Assign IP addresses to Ethernet ports (CN1/CN2) for redundancy. Default baud rate: ‌9600bps‌.
   • Bind a unique ‌6-character Config ID‌ for system integration49.

3. ‌I/O Expansion‌

   • Link S800 I/O clusters via ‌optical/electrical ModuleBus‌ (max. 12 units per cluster).

‌Operational Checks‌

PM864AK01 3BSE018161R1 pdf
REF3BSE018161R1-pm864ak01

·····································································································································································································································································································································
