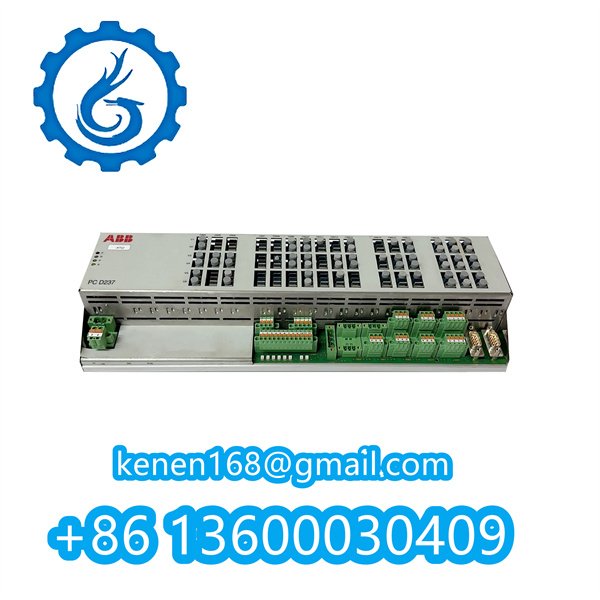

PCD237A101 3BHE028915R0101 ABB excitation system module

Name: PCD237A101 3BHE028915R0101 ABB excitation system module
Brand: ABB
SKU: 1665
Availability: InStock

$235.00

he ABB PCD237A101 3BHE028915R0101 is a power control device, specifically an excitation unit controller, used in AC generator excitation systems. It’s a high-performance and stable component within modular digital exciters. The device features two independent digital controllers, each with its own microprocessor and power supply, allowing for control of an excitation transformer.
