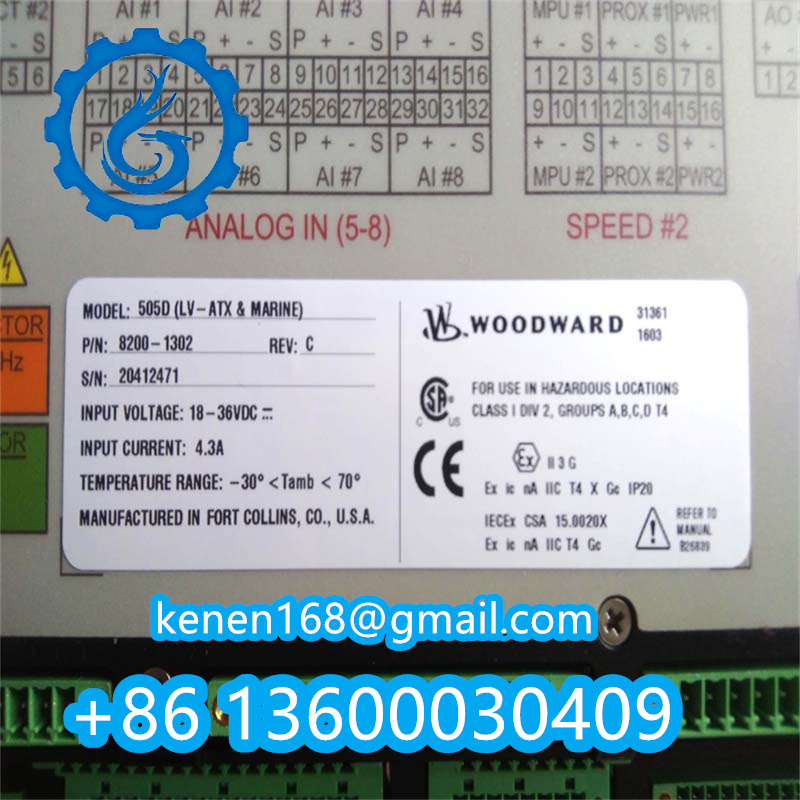

8200-1302 WOODWARD

Problem Analysis

1. ‌User Intent‌: The user requests an English rewrite of the daily maintenance procedures for the ‌Woodward 8200-1302 digital speed governor‌, likely for technical documentation or operational manuals.
2. ‌Key Requirements‌:
   • ‌Accuracy‌: Ensure precise translation of technical terms (e.g., “调速器” → “speed governor”).
   • ‌Structure‌: Present steps logically with clear numbering/bullets.
   • ‌Safety Emphasis‌: Highlight critical warnings (e.g., power isolation).
   • ‌Contextual Consistency‌: Align with Woodward’s terminology from reference materials25.
3. ‌Sources Integration‌:
   • Cite specifications from product descriptions (e.g., 24V DC power input2, HMI interface5).
   • Include maintenance-relevant features (redundant speed inputs, alarm logging5).
4. ‌Style‌: Concise, imperative sentences typical of industrial manuals.

‌Daily Maintenance Procedures for Woodward 8200-1302 Digital Speed Governor‌

‌1. Pre-Maintenance Preparations‌

• ‌Power Safety‌: Disconnect 24V DC power supply and verify isolation using a multimeter2.
• ‌Tool Checklist‌:
  • ESD-safe wrist strap (for HMI panel handling5).
  • Calibrated RPM measurement device (accuracy ±0.25%2).

‌2. Visual Inspection‌

• ‌Enclosure‌: Check for IP20-rated integrity; clean vents with dry compressed air (<30 psi)8.
• ‌Connectors‌: Inspect terminal blocks (X1/X2) for corrosion or loose wiring6.

‌3. Functional Checks‌

• ‌LED Diagnostics‌:
  • ‌Green steady‌: Normal operation5.
  • ‌Red flashing‌: Review fault log via Modbus port (code definitions in manual5).
• ‌Speed Inputs‌: Test redundant probes (magnetic/eddy current) with simulated 0–6000 RPM signals25.

‌4. Software & Calibration‌

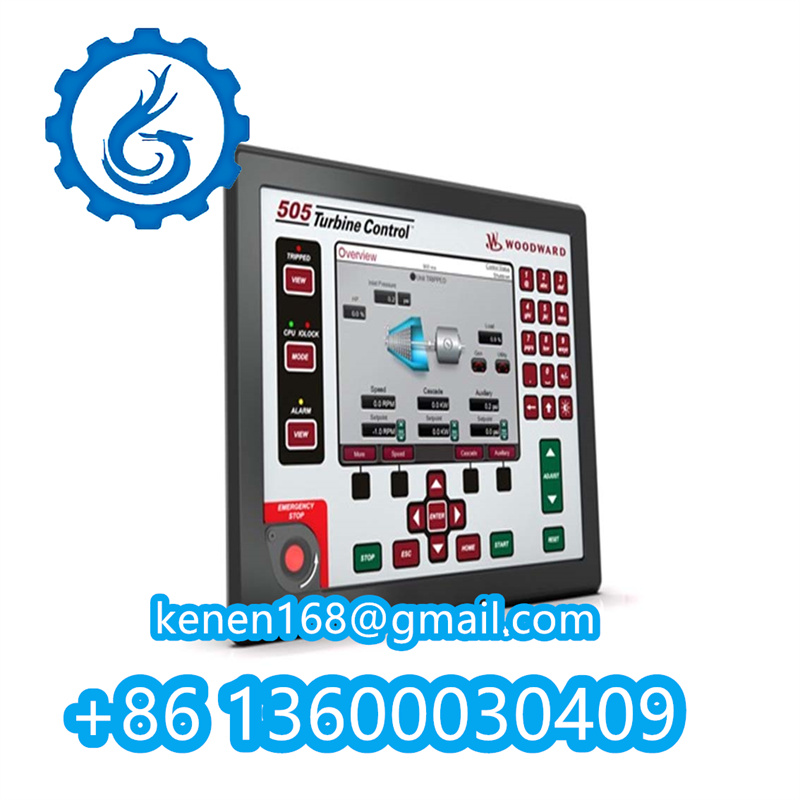

• ‌HMI Interface‌:
  • Navigate to ‌Calibration Mode‌ → Validate 4-20mA control outputs using standard load5.
  • Clear obsolete alarm timestamps (RTC-synced events5).
• ‌Firmware‌: Verify version compatibility with ‌IndraDrive/EcoDrive‌ suites4.

‌5. Post-Maintenance‌

• ‌Documentation‌: Record calibration data and fault resolutions in maintenance log.
• ‌Power Restoration‌: Reconnect 24V DC; monitor startup LEDs for 60 seconds

8200-1302 WOODWARD PDF

8200-1302 WOODWARD

·········································································································

Our advantages:

1. The brand new product comes with a one-year

comprehensive warranty.

2. All products undergo strict quality inspections.

3. Contact us and our team will provide competitive

quotes and procurement plans.
