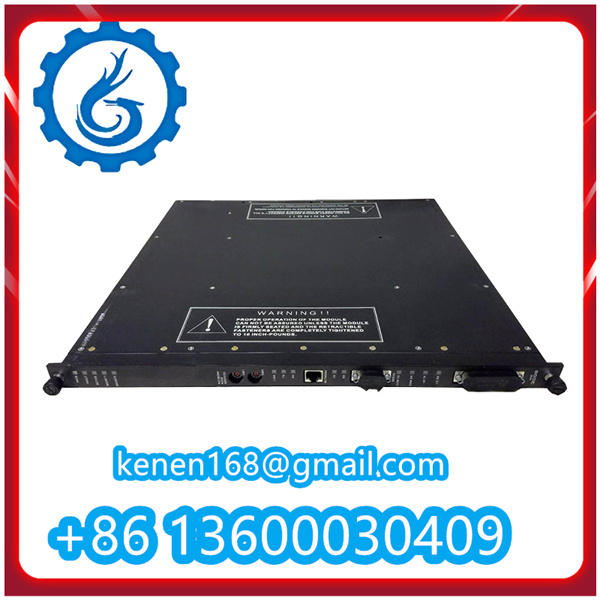

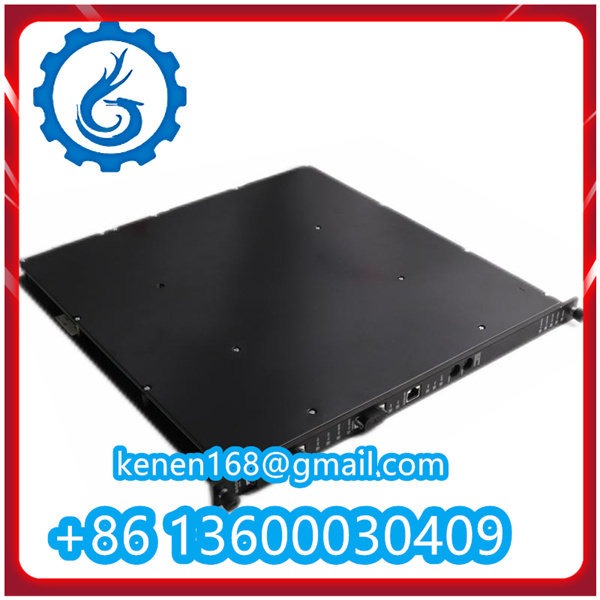

3008 Processor Module SUPPLY BY TRICONEX

3008 Processor Module Product Introduction & Technical Specifications
Product Introduction
The 3008 Processor Module is a core computing component supplied by TRICONEX, a globally recognized leader in critical safety and control systems for industrial applications. As a key part of TRICONEX’s safety instrumented system (SIS) and distributed control system (DCS) architectures, this module is engineered to deliver high-speed, reliable data processing and control capabilities for mission-critical industrial processes. It is specifically designed to meet the rigorous safety and performance requirements of industries such as oil & gas, petrochemical, power generation, and pharmaceutical manufacturing.
Featuring a redundant, fault-tolerant design, the 3008 Processor Module ensures uninterrupted operation even in the event of component failures, complying with international safety standards including IEC 61508 (SIL 3 certification) and API 670. It supports real-time data exchange with other system modules (such as I/O modules and communication modules) and enables advanced control logic execution, making it an essential component for optimizing process efficiency, ensuring operational safety, and minimizing downtime. The module’s hot-swappable design facilitates easy maintenance and system upgrades without disrupting critical operations, enhancing overall system availability.

Technical Specifications
Brand: TRICONEX
Model: 3008 Processor Module
Specification: Fault-tolerant safety processor; compatible with TRICONEX Tricon and Trident system architectures; SIL 3 certified per IEC 61508; supports ladder logic, function block diagram (FBD), and structured text (ST) programming; hot-swappable for non-interruptive maintenance; integrated self-diagnostic capabilities
Weight: Net weight: 1.2 kg; Gross weight (with packaging): 2.0 kg
Dimensions: 175 mm (length) × 110 mm (width) × 235 mm (height); designed for TRICONEX standard 3-slot, 6-slot, and 12-slot chassis mounting
Input:
Power input: Redundant 24 VDC ±10%; typical input current: 0.6 A per power channel
Communication input: Supports high-speed backplane communication with TRICONEX I/O modules (data transfer rate: up to 1 Gbps); compatible with external communication interfaces via optional modules (Ethernet, RS485)
Diagnostic input: Integrated self-monitoring inputs for power supply status, backplane connectivity, and internal component health

Output:
Communication output: Backplane communication to system I/O modules and operator workstations; optional Ethernet output (TCP/IP, PROFINET) for remote monitoring and control
Control output: Digital control signals for system configuration and module coordination; alarm output signals (dry contact) for fault notification
Physical Parameters:
Operating temperature: 0°C to +60°C (standard); -40°C to +70°C (extended temperature range with optional cooling)
Storage temperature: -40°C to +85°C
Relative humidity: 5% – 95% (non-condensing)
Protection level: IP20 (chassis-mounted); front panel sealed to IP40
Housing material: Flame-retardant ABS plastic (UL94 V-0 rating) with aluminum heat sink and electromagnetic shielding
Mounting type: TRICONEX standard chassis mounting (compatible with 35 mm DIN rail-adaptable chassis)
